The Art of Ring Settings
Antique ring settings determine how a gemstone is held within its mount, and each technique carries the fingerprint of its era. From the enclosed collets of Georgian goldsmiths to the fine platinum claws of Edwardian craftsmen, the method used to secure a stone reveals as much about a ring's age and origin as any hallmark. This guide covers six principal setting types — collet, claw, bezel, gypsy, pavé, and channel — explaining how each was constructed, which periods favoured it, and how to recognise it on an antique ring.
What Is a Collet Setting?
A collet setting holds a gemstone within a metal cup or collar that encircles the stone's girdle. The jeweller forms a thin band of gold around the gem, then burnishes or crimps the metal inward to hold it secure. This is the oldest form of gemstone mount, with examples in museum collections dating to ancient Egypt.
Georgian jewellers refined the collet into its most characteristic form: the closed-back setting. A thin sheet of gold was shaped into a cup, metallic foil was placed beneath the stone, and the back was sealed shut. The foil — silver behind diamonds, tinted copper behind coloured stones — reflected light back through the gem, compensating for the limited brilliance of rose-cut and table-cut diamonds viewed under candlelight.

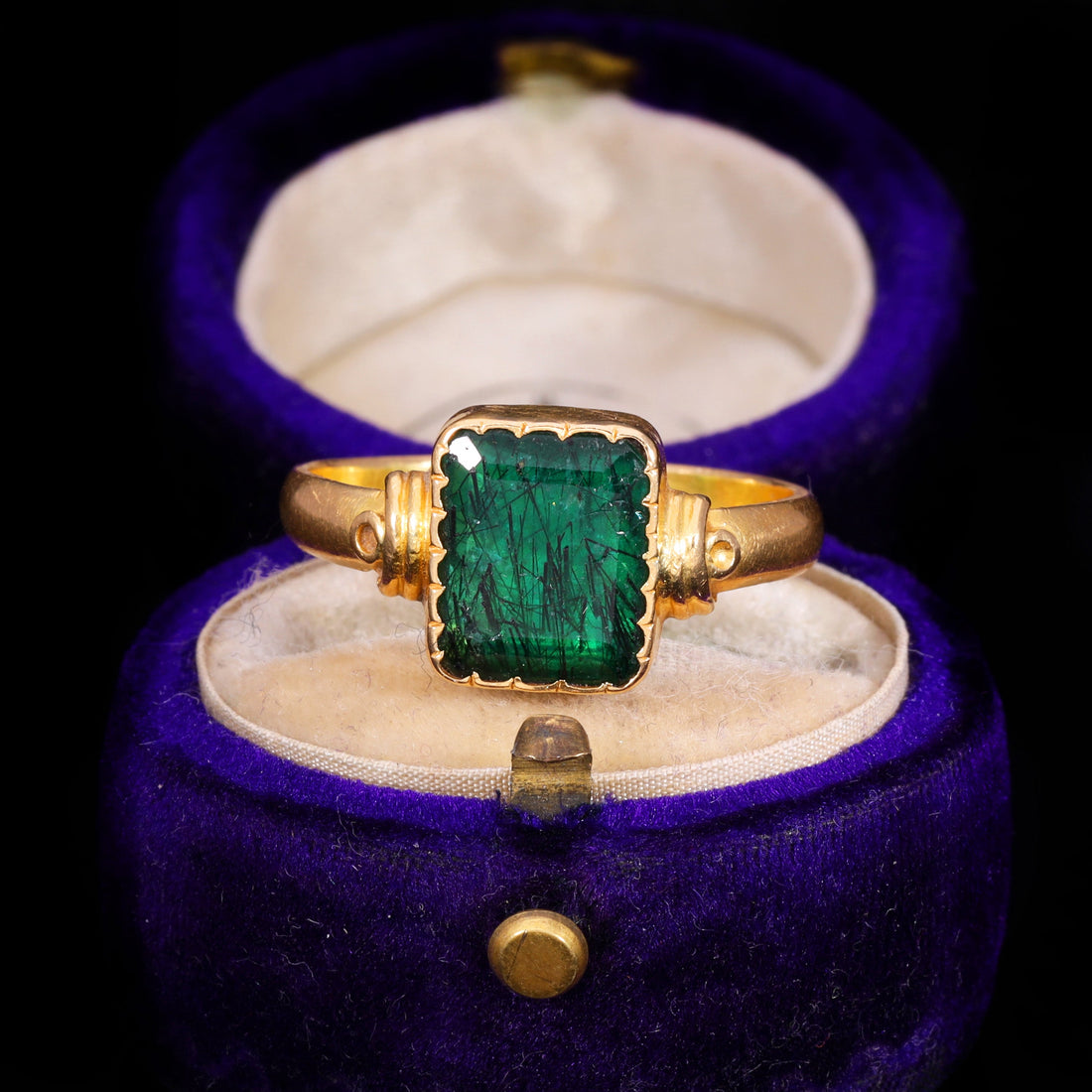

The crimped collet is a variation where the rim is cut into small projections, each pressed individually over the stone to hold it. This creates a distinctive scalloped edge recognisable on 18th and 19th century rings. The cut-down collet, a further refinement, involves carefully removing metal between these projections to reduce the visible metalwork while still maintaining full security.
How Does a Claw Setting Work?
A claw setting uses individual metal projections — typically four to six prongs — to grip a gemstone at its girdle, raising it above the band. Claw settings became popular during the early Victorian period in the 1830s, replacing the enclosed collet and allowing light to enter the stone from all angles.
Victorian claw settings were fabricated entirely by hand. The jeweller soldered individual prongs onto a coronet — a small crown-shaped mount — and bent each one over the stone using a pusher tool. Because each prong was shaped individually, antique claw settings show slight variations in thickness and spacing that clearly distinguish them from uniform, machine-made modern mounts.
The defining moment came in 1886 when Tiffany & Co. introduced their six-prong solitaire design, the first setting engineered specifically to lift the diamond well above the band and maximise its exposure to light. The design became so widely imitated that the company publicly warned against copies. Edwardian jewellers working in platinum pushed claw settings further still, drawing individual prongs finer than gold could permit and producing mounts of exceptional delicacy where the metal virtually disappeared behind the stone.
What Is a Bezel Setting?
A bezel setting surrounds a gemstone with a continuous rim of metal, holding it securely without claws or prongs. The technique dates to approximately 3000 BC, with examples found in ancient Egyptian, Sumerian, and Roman jewellery. Bezel settings are among the oldest and most enduring methods of mounting a stone in a ring.
Roman jewellers used the bezel to protect intaglio carvings on signet rings, creating a smooth flat surface for pressing into sealing wax — a practical requirement that influenced ring design well into the medieval period. Medieval goldsmiths developed what the trade calls the 'pie-dish' bezel, a shaped surround contoured to fit the irregular forms of unfaceted cabochon stones, since few gemstones were faceted before the 15th century.
The distinction between bezel and collet has blurred across centuries of use. In modern trade terminology, a bezel describes a setting where a continuous wall wraps around the stone's full circumference, while a collet refers to a cup-shaped mount. In antique rings the terms overlap — Georgian closed-back settings function as both simultaneously. Full bezels predominate in antique rings because they offered complete protection for softer gemstones and unfaceted cabochons.
What Is a Gypsy Setting?
A gypsy setting — also called a flush setting — seats a gemstone directly into the metal of the band so that the stone's table sits level with the surrounding surface. The technique became popular during the mid-Victorian period, particularly for men's rings, and is recognised by its low profile and characteristic star-shaped engraving.
To create a gypsy setting, the jeweller drills a seat into a substantial gold band, then uses a burnishing tool to push the surrounding metal tightly against the stone's girdle. The result is a smooth, unbroken surface with the gemstone embedded within it. Victorian examples typically feature an additional decorative element: triangular incisions cut with a graver radiate outward from the stone, creating the distinctive star pattern that gives the alternative name 'star-set'.
The heavy bands required for this technique suited Victorian taste for substantial gold rings, and most surviving examples are in 18ct gold. Single old mine cut diamonds and deep-coloured garnets are the stones most frequently encountered in antique gypsy settings, though rubies and sapphires also appear. The low profile made these rings practical for active daily wear, contributing to their sustained popularity well into the 20th century.
What Are Pavé and Channel Settings?
Pavé and channel settings both arrange multiple small stones across a surface or along a band, but they use different techniques to hold them. Pavé settings hold each stone with tiny metal grains raised from the surface. Channel settings trap stones between two parallel metal walls. Both techniques appear in antique jewellery, with distinct period associations.
| Feature | Pavé | Channel |
|---|---|---|
| Stone arrangement | Scattered across a surface | Single row between walls |
| Holding mechanism | Metal grains raised from surface | Tension from parallel metal walls |
| First appeared | 18th century France | 1920s Art Deco |
| Typical use in antique rings | Accent work, decorative surfaces | Eternity bands, wedding rings |
| Metal visibility | Minimal between stones | Moderate (walls visible) |
How Does Pavé Work?
The pavé technique, from the French word meaning 'paved', developed in 18th century France. The jeweller drills small holes into the metal surface, places a stone in each one, and raises tiny metal grains around each stone using a beading tool. These grains press against the stone's girdle to hold it in place. The overall effect resembles a paved surface, with minimal metal visible between the gems.
Georgian-era pavé used gold grains and is relatively rare in surviving rings. The technique achieved its widest popularity during the Art Deco period, when houses such as Cartier used pavé to create dense fields of diamonds within geometric designs. Advances in metalworking allowed Art Deco jewellers to form finer grains than their predecessors had managed, producing surfaces where individual holding mechanisms are barely visible to the naked eye.
How Does a Channel Setting Work?
Channel settings emerged during the Art Deco era of the 1920s, complementing the period's emphasis on clean geometric lines. Stones sit in a row between two parallel metal walls that press against their girdles, with no individual prongs or grains needed. The technique creates a sleek, continuous line of gems with smooth metal edges.
The method requires precisely matched stones of uniform size, as each must fit snugly between the channel walls. Art Deco channel-set rings frequently feature calibré-cut coloured stones — sapphires, rubies, or onyx — arranged alongside diamonds in the linear compositions that define the era. Channel settings are most commonly found in eternity bands and wedding rings, where the smooth edges prevent snagging and allow comfortable stacking with other rings on the same finger.
How Did Antique Ring Settings Evolve Across the Eras?
Ring settings evolved alongside advances in metalworking, gem cutting, and metallurgy. Georgian jewellers worked within the limitations of soft gold and dim candlelight, requiring closed-back foil mounts. Victorian innovation introduced open-back claw settings. Edwardian platinum enabled prongs of unprecedented fineness. Each era's dominant technique reflects both its available technology and its aesthetic values.
| Era | Dominant Setting | Typical Metal | Key Characteristic |
|---|---|---|---|
| Medieval (pre-1714) | Bezel | Gold | Simple metal rim around cabochon |
| Georgian (1714–1837) | Closed-back collet | 18ct–22ct gold | Foil backing, sealed rear |
| Victorian (1837–1901) | Open-back claw | 18ct gold | Hand-cut prongs, gypsy settings appear |
| Edwardian (1901–1915) | Millegrain claw | Platinum | Fine prongs, beaded borders |
| Art Deco (1920–1935) | Pavé, channel | Platinum, white gold | Geometric, calibré-cut stones |
Georgian settings were closed by necessity. Foil backing required a sealed rear to protect the reflective layer from moisture, and the rose-cut and table-cut diamonds of the period did not produce sufficient internal brilliance to perform well in open mounts. The transition to open-back settings accelerated through the Victorian era as old mine cut and old European cut diamonds achieved greater light return through improved faceting, making foil backing obsolete.
The most dramatic shift came with platinum. Cartier introduced all-platinum jewellery in 1890, and by the Edwardian period the metal had transformed what was structurally achievable in setting design. Platinum's tensile strength allowed finer prongs, its hardness held millegrain borders crisp, and its resistance to tarnish preserved delicate filigree detail indefinitely. When platinum was declared a strategic metal during both World Wars, white gold alloys emerged as a practical substitute.
What Are Millegrain and Gallery Work?
Millegrain and gallery work are decorative metalwork techniques that enhance ring settings without holding stones directly. Millegrain creates tiny beaded borders along metal edges, while gallery work is the openwork beneath a setting that admits light and provides structural support. Both reached their highest expression during the Edwardian period.
What Is Millegrain?
The jeweller creates millegrain using a knurling tool called a millegrain wheel or molette. This small roller has a serrated edge that impresses a row of uniform beads into the metal when drawn firmly along an edge. Ancient jewellers in Southeast Asia achieved similar effects by hand-soldering individual beads, but the wheeled tool made the process faster and more consistent.
Platinum proved ideal for millegrain work. Its hardness held the fine bead row without the beads collapsing or losing definition, and its resistance to tarnish kept borders crisp over decades. The consistency of the beads — their size, spacing, and height above the surface — indicates the craftsman's skill. Fine Edwardian workshop millegrain shows exceptional regularity, while less accomplished examples display uneven bead spacing that is visible under magnification.
What Is Gallery Work?
Gallery work refers to the decorative openwork metalwork situated beneath a ring's main setting, occupying the space between the stone mount and the band. This openwork construction serves both structural and aesthetic purposes: it supports the setting to prevent it separating from the shank, allows light to reach the underside of the stone to increase brilliance, and provides visual beauty when the ring is viewed from the side.
Victorian five-stone and cluster rings frequently display scrolled gallery rails beneath each stone. Edwardian pieces take gallery work to its finest expression, with delicate pierced filigree patterns that resemble lace. The quality of a ring's gallery work is a reliable indicator of overall craftsmanship — a well-executed pierced gallery with clean saw cuts and smooth finishes reflects a confident, highly skilled workshop.
How Can You Identify the Setting on an Antique Ring?
Identifying a ring's setting requires close examination of how the stone meets the metal. A jeweller's loupe reveals construction details invisible to the naked eye — the shape of prongs, the presence of tiny grains, or remnants of foil behind a stone each point to specific techniques and periods.
| Setting Type | Key Visual Indicators |
|---|---|
| Collet | Metal cup encircling stone; closed back; possible foil visible behind stone |
| Claw | Individual prongs gripping stone at girdle; slight irregularity in antique examples |
| Bezel | Continuous smooth metal rim; no prongs visible; stone fully surrounded |
| Gypsy | Stone flush with band surface; star-shaped engraving radiating from stone |
| Pavé | Multiple small stones across surface; tiny metal grains between stones |
| Channel | Row of stones between parallel metal walls; no prongs or grains visible |
The setting also helps date a ring when hallmarks are absent or illegible. A closed-back collet with traces of foil strongly suggests Georgian manufacture. Hand-cut claw settings with slight asymmetry point to the Victorian period. Star-set gypsy mounts indicate a mid-Victorian date or later. Millegrain borders around claw or pavé settings narrow the range to the Edwardian era or early Art Deco.
Combining the setting type with the metal choice and gemstone cut allows experienced dealers to place a ring within a specific era with reasonable confidence, even without readable hallmarks. A platinum claw setting holding an old European cut diamond, for instance, is characteristically Edwardian — the combination of metal, setting technique, and stone cut all point to the same period.
Browse our collection of antique rings to see how different setting techniques appear across periods. For era-specific examples, explore our Victorian ring collection.
Frequently Asked Questions
What is the most common setting in antique rings?
Claw settings are the most frequently encountered mount in antique rings from the Victorian period onwards. Before the 1830s, collet settings predominated. The shift from collet to claw coincided with advances in gem cutting — old mine cut and old European cut diamonds achieved sufficient brilliance through their own faceting to perform well in open, light-admitting mounts.
Does the setting affect an antique ring's value?
Original settings significantly affect value. A ring retaining its period-correct mount — whether a hand-cut collet or Victorian claw setting — commands a premium over one re-set in a modern mount. Replacement settings are identifiable by uniform machine-made prongs, modern solder marks, and a mismatch between the mount style and the stone's cut or the ring's hallmark date.
Can an antique ring's setting be repaired without reducing its value?
Skilled conservation using period-appropriate techniques can restore a damaged setting without diminishing value. The key distinction is between sympathetic repair — rebuilding a worn prong to match the original — and wholesale replacement. A jeweller experienced in antique work will match the metal composition, technique, and proportions of the period setting rather than substituting modern methods.
Are collet settings more secure than claw settings?
Collet settings enclose more of the stone's circumference, offering greater physical protection against impact. Claw settings provide adequate security when properly maintained and have the advantage of exposing more of the stone to light. Neither is inherently superior — the choice depends on the stone's hardness, the ring's intended daily use, and the wearer's activity level.
Why do some antique rings have a closed back behind the stone?
Closed-back settings were standard in Georgian and earlier rings. Metallic foil placed behind the stone reflected light back through the gem, compensating for the limited internal brilliance of rose-cut and table-cut diamonds viewed by candlelight. Once cutting techniques advanced during the Victorian period, open-back settings became standard as diamonds achieved brilliance through improved faceting geometry alone.
